客艙 Accommodations

客艙長度 Cabin Length 7.92 ft  2.41 m
客艙寬度 Cabin Width 6.25 ft  1.93 m
客艙高度 Cabin Height 4.42 ft  1.35 m
客艙面積 Cabin Area 50 ft2  4.65 m2
客艙容積 Cabin Volume 204 ft3  5.78 m3
行李容積 Baggage Volume 38 ft3  1.08 m3
座椅 Seating 12-13

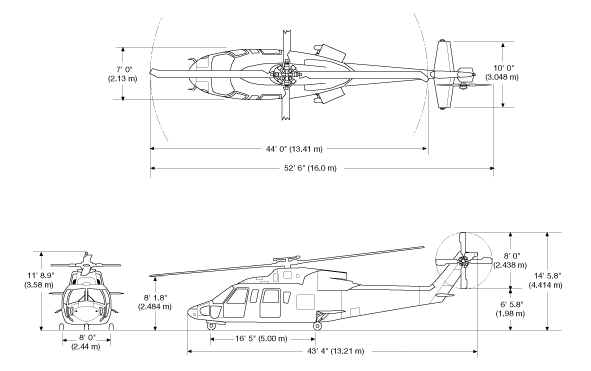

西科斯基S-76C++直升機尺寸

安全設(shè)備 Safety

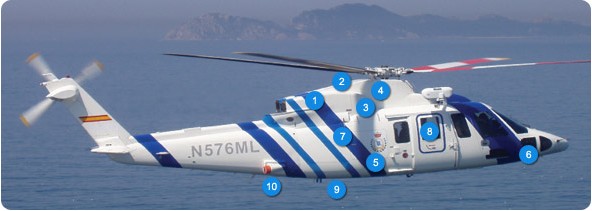

西科斯基S-76C++直升機安全系統(tǒng)

1, Arriel 2S2 engines
2, Dual FADEC
3, Engine inlet barrier filters
4, Sikorsky QUIET ZONE TM gear box
5, Honeywell EVXP HUMS (optional)
6, EGPWS terrain awareness
7, Cockpit Voice Recorder (CVR)
8, Large cabin doors with pop-out windows (optional)
9, Emergency float system (optional)
10, Auto deployable Emergency Location Transmitter (ELT)(optional)
